LeakTrac 2400 - Vinyl Liner Leak Detector

Price

$1,995.00

Specifications

Part #: LT2400

Diameter

Pipe Application

Shipping Weight 33


Quantity:

  • Product Description
  • Specifications
  • Media Resources
  • Replacement Parts

Product Description

The LeakTrac 2400 uses patented technology to direct you to even the smallest pinhole leaks in minutes. This electronic vinyl liner leak detector allows you to stop wasting time visually inspecting every inch of a liner. Join the thousands of other pool professionals who are saving time and generating profits with this amazing piece of equipment.
The LeakTrac 2400 finds leaks by putting a small electrical charge into the pool water, then tracking the flow of electricity as it makes connections to the ground through conductive penetrations in the liner. This technology is effective on any water containing vessel with an electrically insulating shell (i.e. vinyl, fiberglass, etc.) Now on its 4th version, this industry staple has been innovated and improved over the past 30 years and now features a wireless connection and digital controls.


USING THE LT2400 TAKES ONLY MINUTES

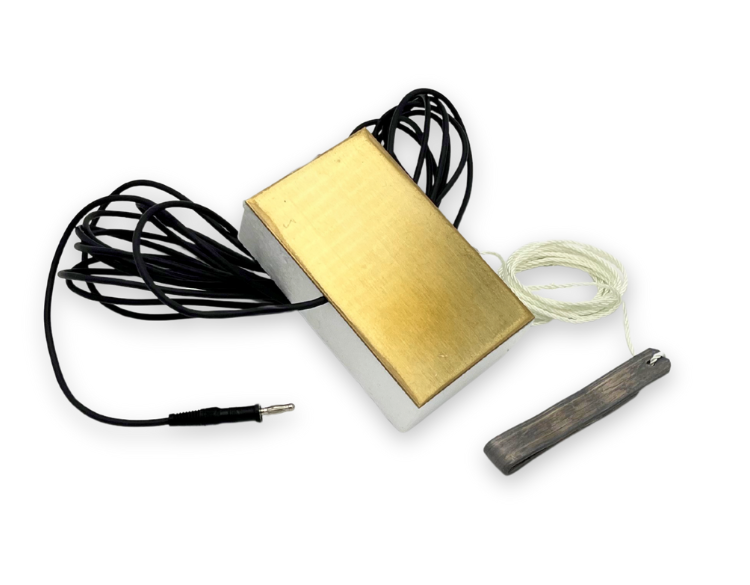

1. Throw the Input Float into the pool. Electricity flows from the Booster through the float into the pool. 2. Attach the Ground Cable to a grounded object outside the pool. A ladder anchor, diving board anchor,
or ground stake work well.
3. Plug Ground Cable and Input Cable into the battery powered Booster that produces the detectable electrical current flow.

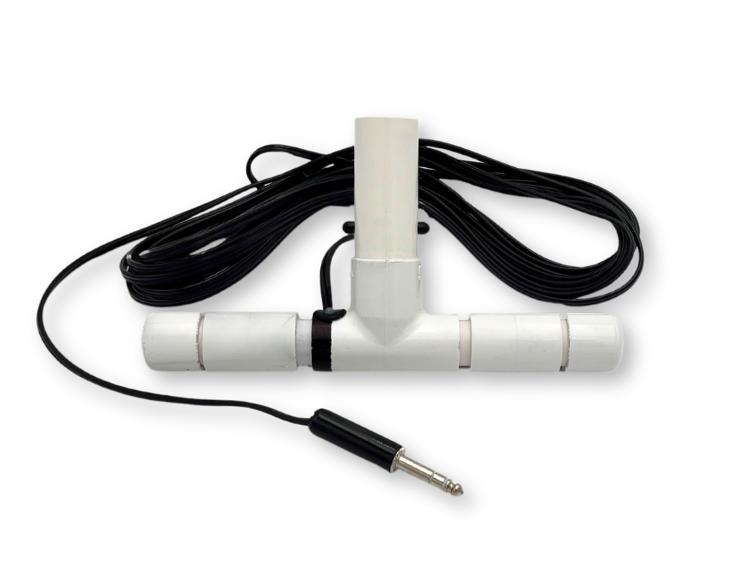

4. The Probe attaches to the end of a standard pool pole. It is then plugged into the back of the
Signal Processing Unit.
5. The simple to operate SPU produces an audible clicking tone when the probe is pointed in the direction of the electrical flow. 6. As the Probe is brought closer to a leak the clicking increases in frequency allowing leaks to be pinpointed in minutes.

Specifications

Air Delivery
Batteries Booster: 8 - AA, SPU: 2 - AA
Blower Fitting
Bypass Diameter
Case Size 19"x14"x7.5"
Chuck Size
Color
Cure Time
Electrical
Expansion
Extension Length
Filter Types
Frequency Range
Gain
Proper Inlation Pressure
Input Current
Length
Made By Anderson MFG
Made In USA
Maximum Depth
Maximum Diameter
Minimum Diameter
Minimum Temperature
Mixer Tubes
Motor
Opening Connection
Pipe Application
Regulator
Shipping Weight 33
Sticker Color
Unlabeled Spec 1
Unlabeled Spec 2
Unlabeled Spec 3
Vacuum Fitting
Wireless Connection

Media Resources

Slideshow
Using the LeakTrac
Videos
temp image temp image
